Universal wall formwork
Formwork systems for walls and columns. Height up to 6 m, fresh-concrete pressure up to 60 kN/m². XXL / large-panel option with 270 and 300 cm panel heights.
Universal wall formwork

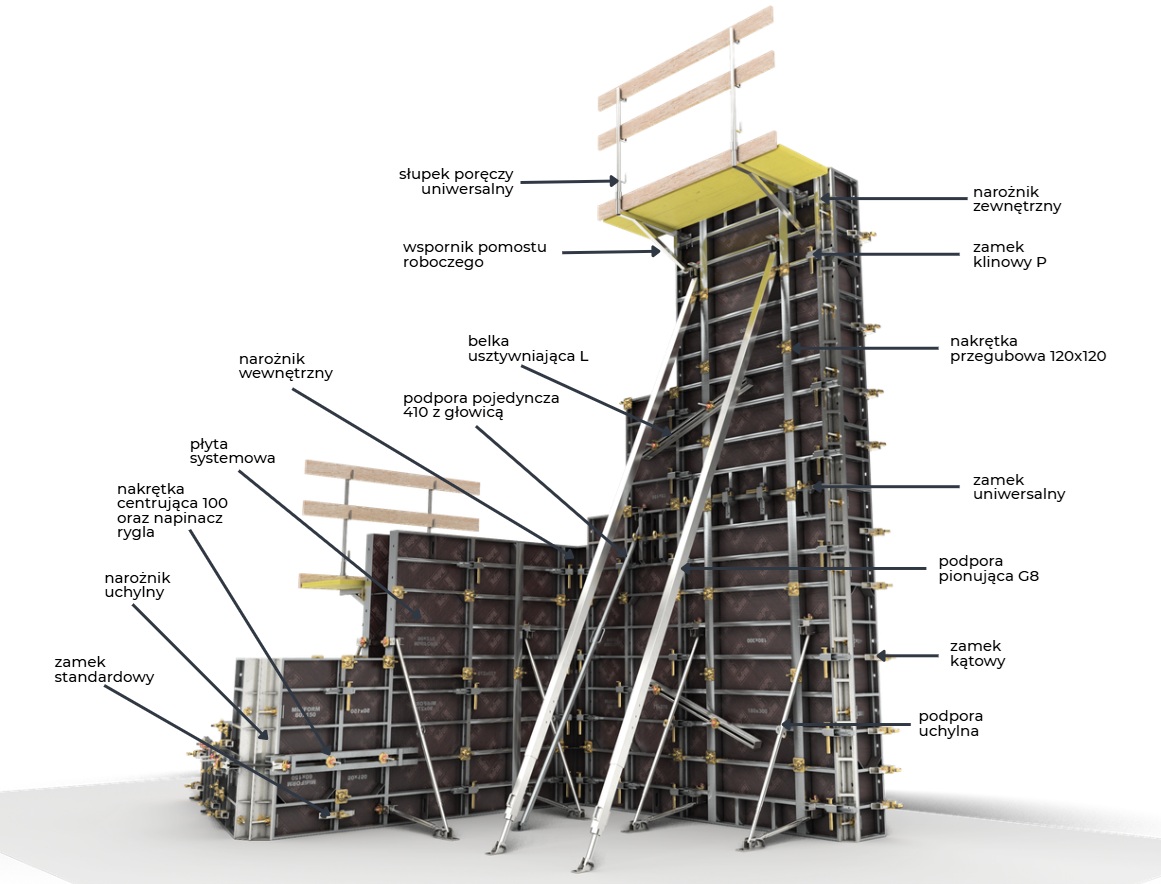

Universal wall formwork is designed for large wall areas, columns and other structural elements. It supports fresh-concrete pressure up to 60 kN/m² and configurations up to 6 m high. An XXL / large-panel version is also available for larger structures.
- Concreting height up to 6 m
- Fresh-concrete pressure up to 60 kN/m²
- Weight approx. 55 kg/m²
- XXL / large-panel option – panels up to 240 cm wide
- Wide range of panel sizes
Technical specifications
Universal wall formwork| Maximum concreting height | 6 m |
| Permissible fresh-concrete pressure | up to 60 kN/m² |
| Weight of 1 m² of formwork | approx. 55 kg |
Standard panel sizes
Heights and widths| Panel heights | Panel widths |
|---|---|
| 90 cm | 25, 30, 40, 45, 50, 55, 60, 65, 70UN, 75, 80, 85, 90 cm |
| 150 cm | 25, 30, 40, 45, 50, 55, 60, 65, 70UN, 75, 80, 85, 90 cm |
| 270 cm | 25, 30, 40, 45, 50, 55, 60, 65, 70UN, 75, 80, 85, 90 cm |
| 300 cm | 25, 30, 40, 45, 50, 55, 60, 65, 70UN, 75, 80, 85, 90 cm |
XXL / large-format panels
For larger structures| Panel heights | Panel widths |
|---|---|
| 270 cm | 120, 180, 240 cm |
| 300 cm | 120, 180, 240 cm |
Applications
The system is intended for forming a range of structural elements.
Strip foundations
Stable support for construction work.
Load-bearing walls
Accurate forming of structural walls.
Rectangular and square columns
Suitable for forming structural columns.
Curved walls
Suitable for forming curved geometries.
Downstand and upstand beams
Structural support elements in buildings.
Lift shafts
Accurate forming of lift shafts.
Abutments
Bridge and civil-engineering elements.
Other civil-engineering structures
The system can be configured for a wide range of applications.
